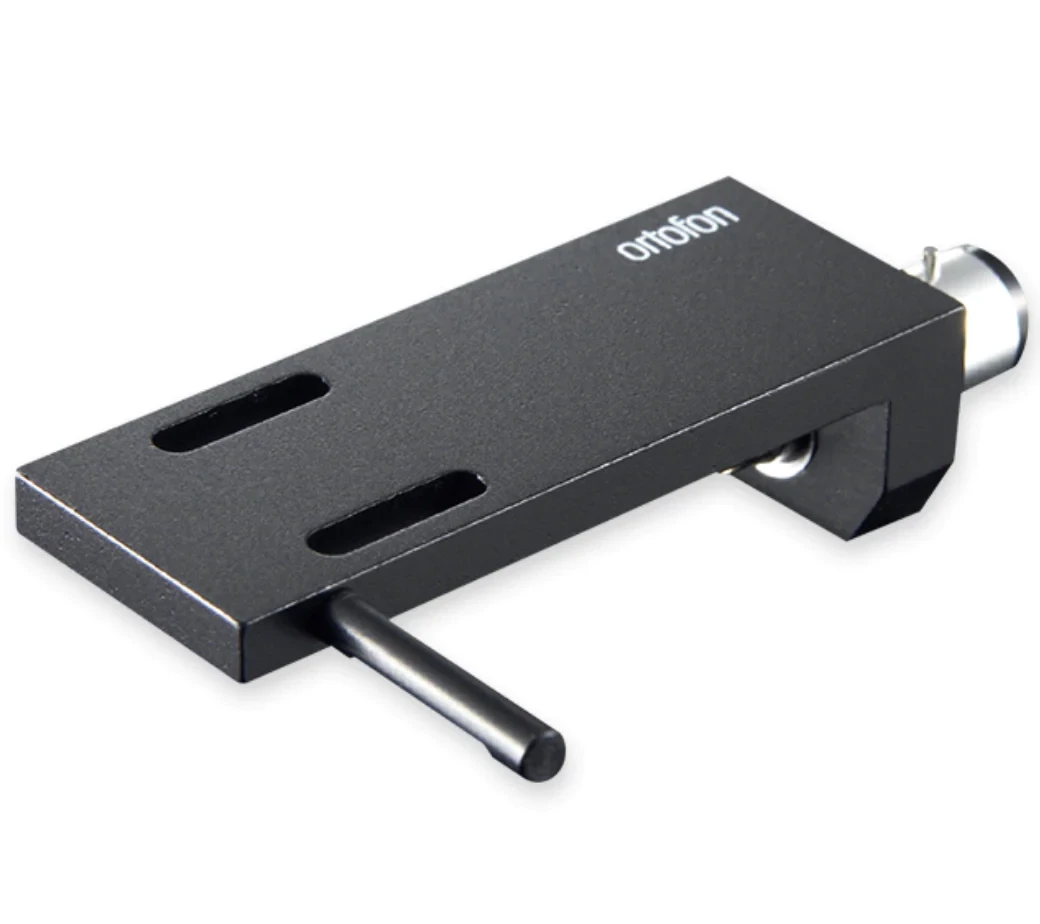

Ortofon LH-2000 aluminium headshell 15,8 gram

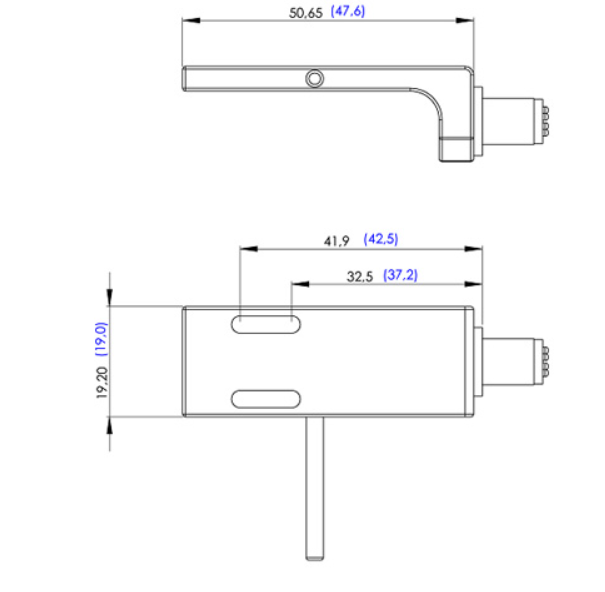

The LH-2000 is a basic high quality headshell designed specifically for HiFi applications. Providing a clean, minimalist aesthetic, the LH-2000 is great for a wide variety of cartridges, e.g. the 2M Series. Knowing the fundamental headshell dimensions will in a lot of cases make it easier to mount and align cartridge and tonearm correctly. Please scroll to the bottom of the page to see the headshells mounting dimensions chart.

All Ortofon cartridges have a color coding of the terminals, indicating red and green for right channel, respectively the hot and ground terminal. White and blue for left channel, respectively the hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system whenever connected inside the cartridge. We recommend connecting lead wires to the cartridge and headshell before mounting the cartridge on the headshell. Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, while Ortofon headshells' PINs diameter is only 1.0 mm.

Specificaties:

Mounting distance

min 35.3 mm, max 43.4 mm

Headshell material

Solid aluminum build

Weight without screws

15.5 gram

Headshell length

50.3 mm

Headshell width
