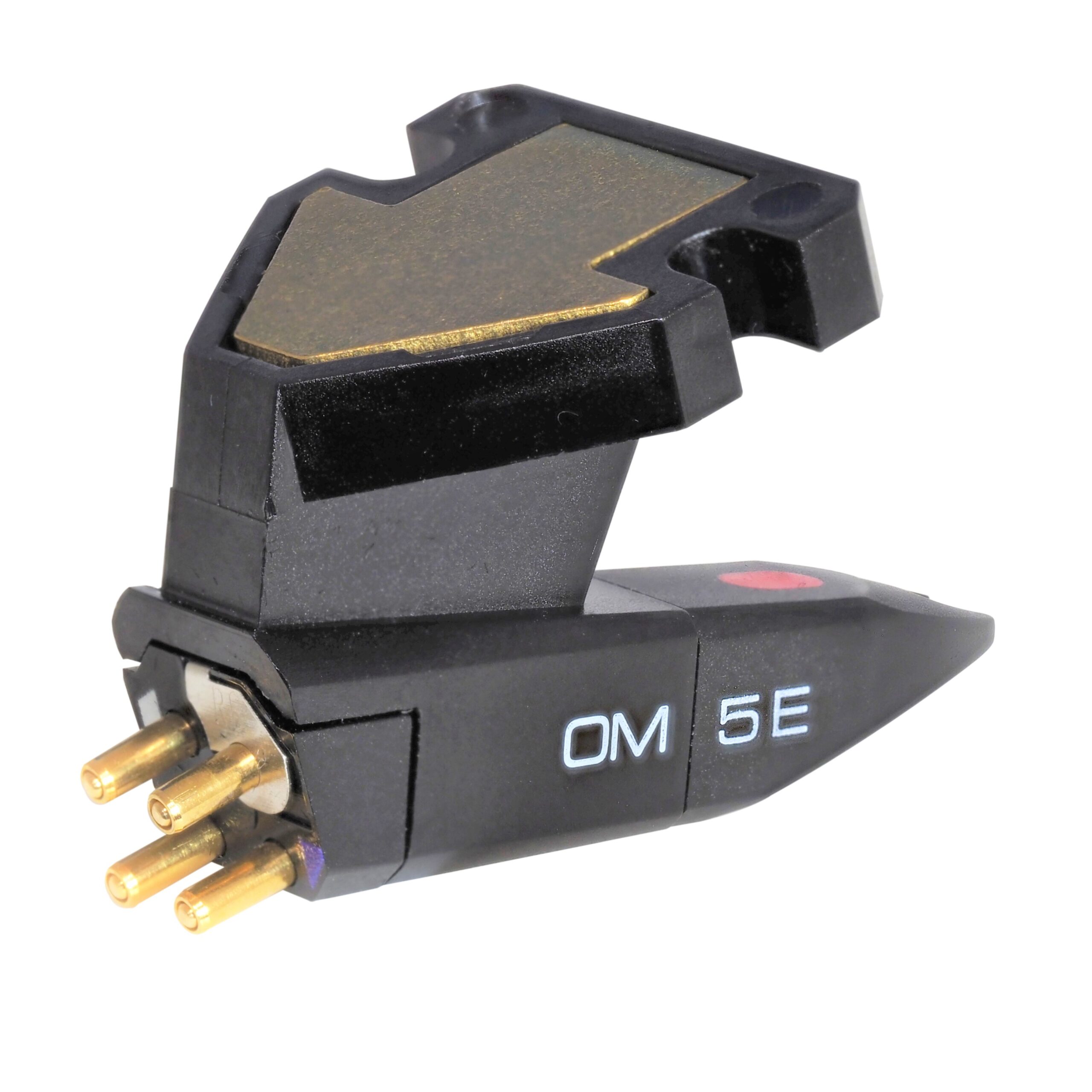

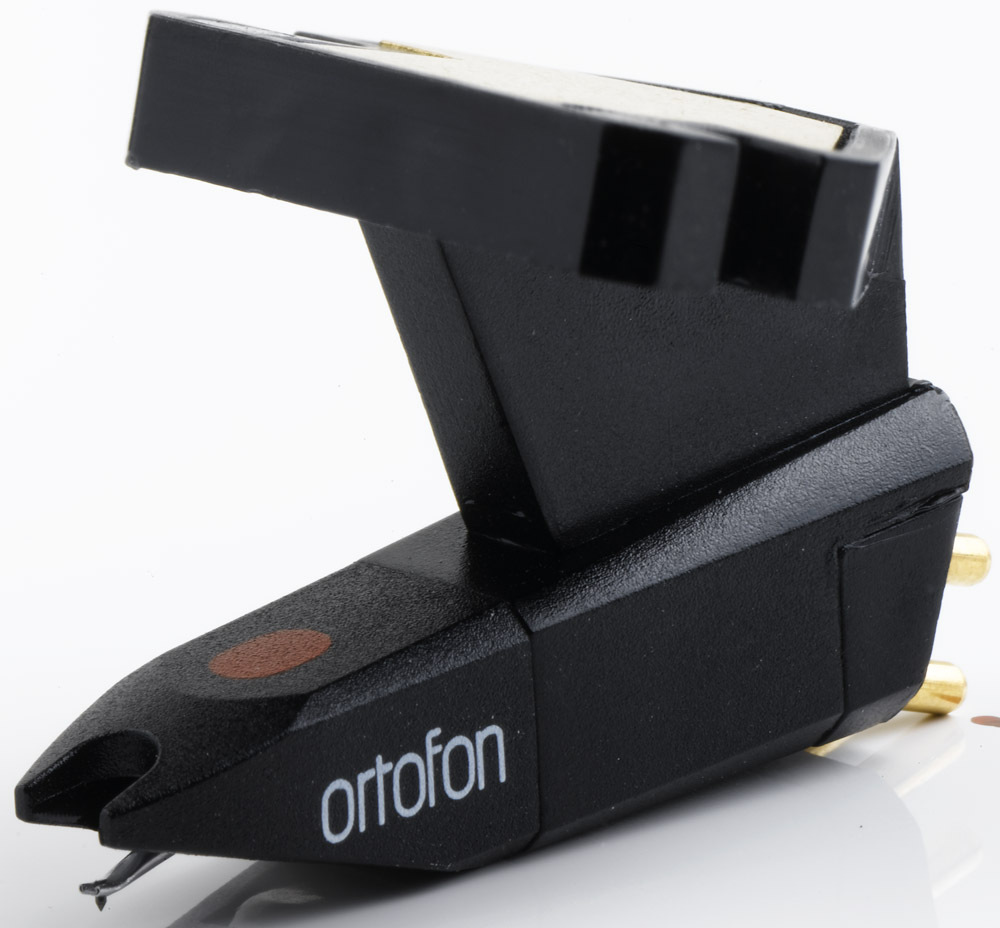

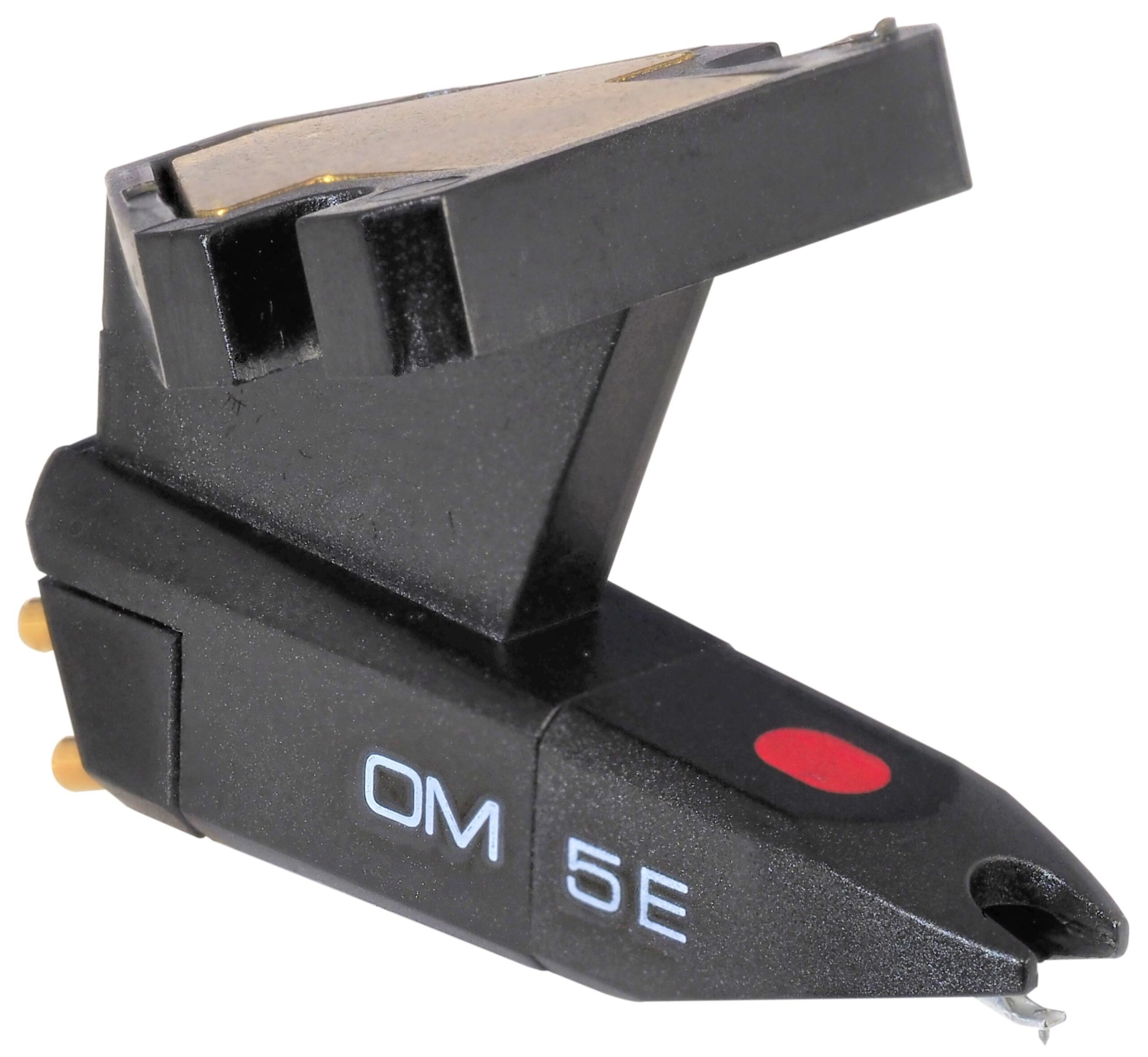

Ortofon OM 5E MM Element

De OM5E is gelijk aan de OM5S behalve dat de sferische (ronde) naald is vervangen door een elliptsiche (eivormige) naald. Elliptische naalden lezen de groef uit met een groter contactoppervlak, met een nog betere weergave van de hoge tonen als resultaat.

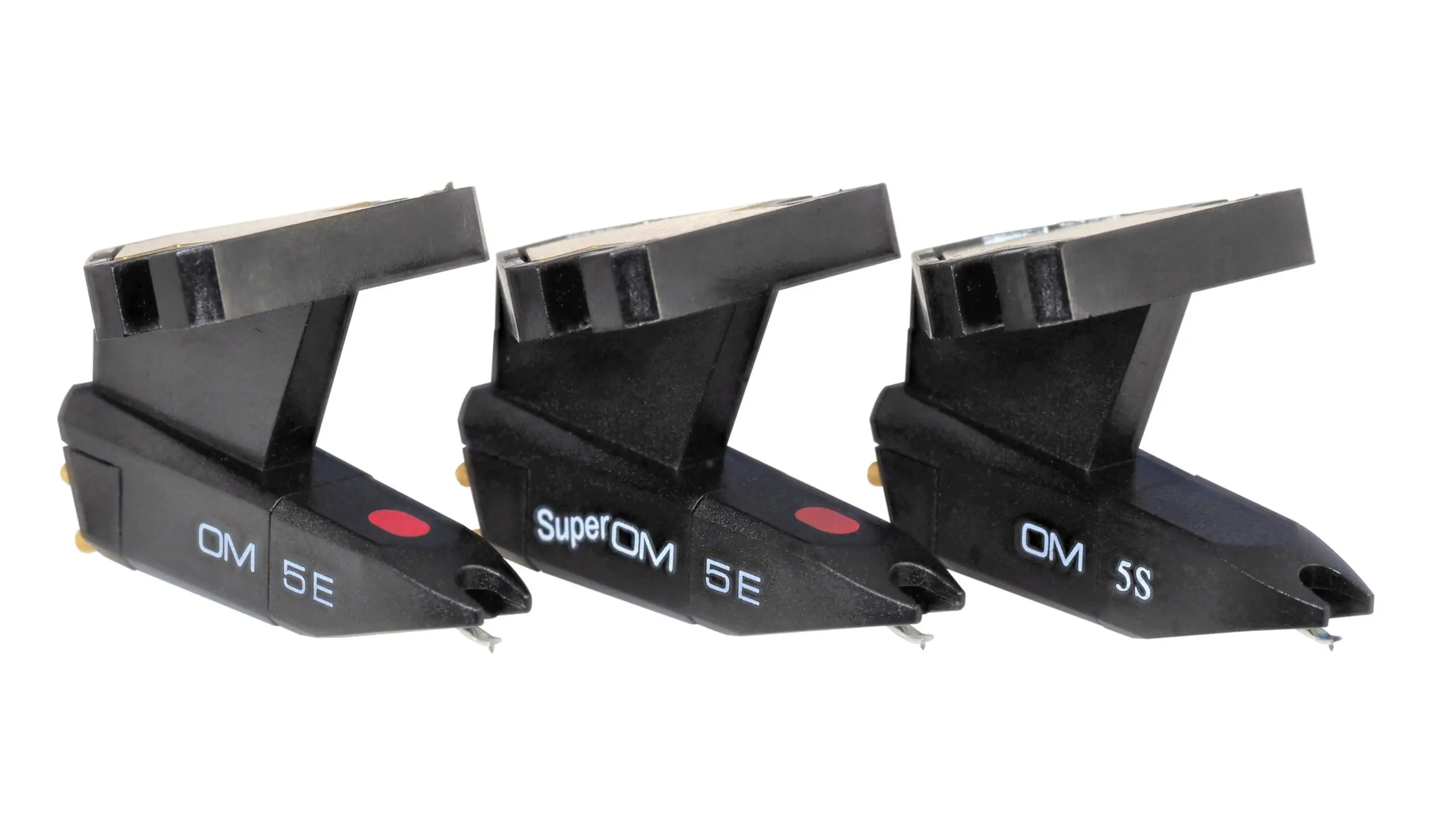

The new Ortofon OM5 series encompasses three basic cartridges: OM5S, OM5E and Super OM5E.

The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.

The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.

The OM5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Specifications

- Output voltage at 1000 Hz, 5cm/sec. 4 mV

- Channel balance at 1 kHz 2 dB

- Channel separation at 1 kHz 22 dB

- Channel separation at 15 kHz 15 dB

- Frequency range at - 3dB 20-25.000 Hz

- Frequency response 20-20.000 Hz ± 2 dB

- Tracking ability at 315Hz at recommended tracking force *)65 µm

- Compliance, dynamic, lateral 20 µm/mN

- Stylus type Elliptical

- Stylus tip radius r/R 8/18 µm

- Tracking force range 1,5-2,0 g (15-20 mN)

- Tracking force, recommended 1,75 g (17,5 mN)

- Tracking angle 20°

- Internal impedance, DC resistance 750 Ohm

- Internal inductance 450 mH

- Recommended load resistance 47 kOhm

- Recommended load capacitance 200-600 pF

- Cartridge colour, body/stylus Black/Black

- Cartridge weight 5 g

- Replacement stylus unit Stylus 5 E

*) Typical value
