Furutech Digi Reference III RCA digitale interlink S/PDIF - 75 Ohm Single 1,2 meter
€ 1.087,00
Prijs incl. BTW (21%) € 188,65
Lengte
Type connector
Geschatte levertijd
1 dag
Op voorraad
1
Productgegevens
Merk: Furutech
Kwaliteitsklasse: High End
Type kabel: RCA / BNC Interlink (S/PDIF)
EAN: 4582237531039

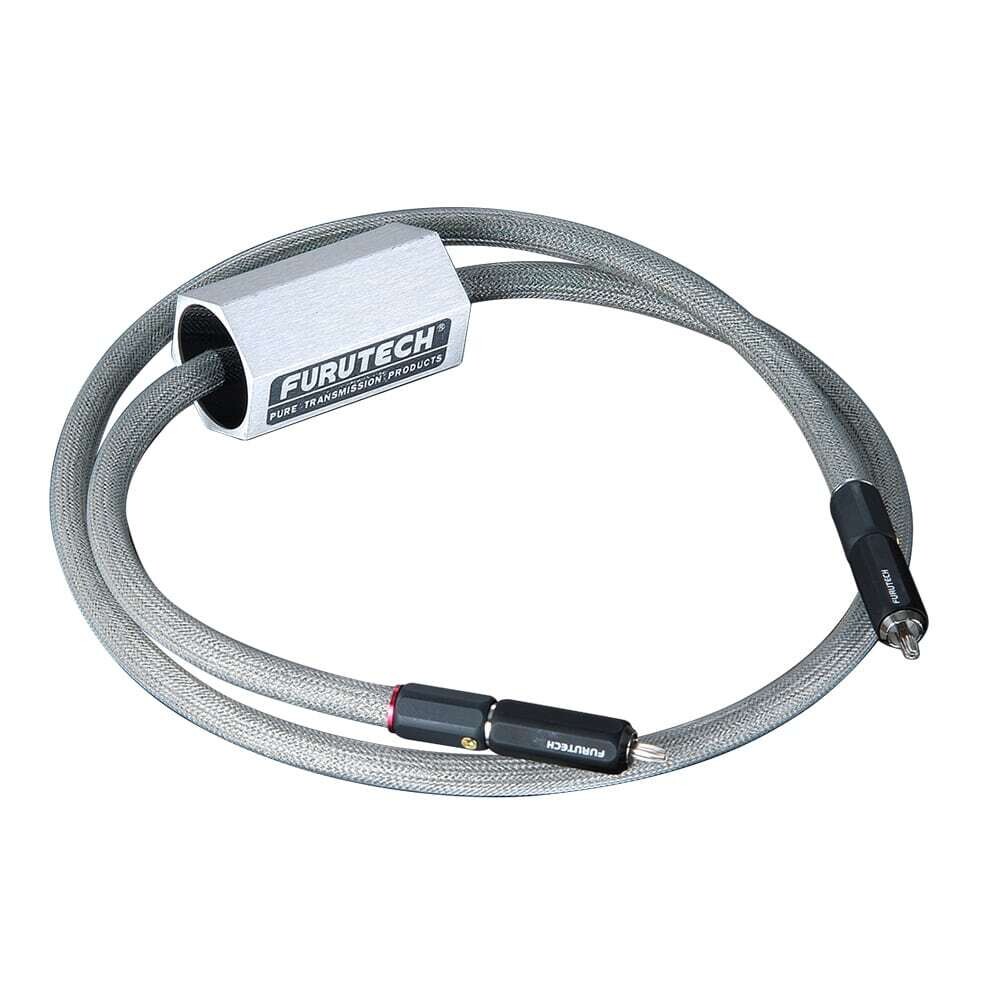

De Furutech Digi Reference III RCA is een Coax-kabel van hoge kwaliteit. Met de EMI-absorberende module zorgt de kabel ervoor dat elektromagnetische interferentie buiten de spreekwoordelijke deur wordt gehouden. De kabel is opgebouwd uit Furutech Alpha-OCC geleiders, met Rhodium RCA-connectoren. De klank is open, snel en verbluffend mooi, en de bouwkwaliteit is, zoals je van Furutech kunt verwachten, fenomenaal.
FEATURES
Top of the line double-shielded α (Alpha)-OCC conductor interconnects, power cords and digital cables featuring extraordinary build quality and Formula GC-303 antimagnetic EMI-absorbent modules surrounding the cable offering greater resolution, more powerful dynamics, and virtuoso performances from all your components. All connectors are rhodium-plated for optimal signal transfer.
•Double-shielded Alpha-OCC Conductors eliminate radiated noise
•Formula GC-303 Antimagnetic EMI-Absorbent Modules surround each cable
•High performance beautifully engineered rhodium-plated connectors [RCA FP-106 (R)] or
BNC [FP-3-117 (R)] transfer signal without reflections for extremely low jitter performance
•Center filament pin [FP-106 (R)] a high-contact work of engineering art composed of nonmagnetic
rhodium-plated phosphor bronze with Teflon dielectric
•RCA connector backbone composed of nonmagnetic rhodium-plated eutectic cast copper alloy
with beautifully-finished nonmagnetic copper alloy outer locking shell
•BNC connectors [FP-3-117 (R)] characteristic impedance 75 ± 5Ω
•Additionally shielded with special fiberglass and 0.12 mm Alpha conductor braid
•Insulated with air-foamed HDPE reducing capacitance and damping vibration
•Results in greater resolution, clarity, powerful dynamics, and an ultra-quiet soundstage in which
music develops more fully without artificial upper-frequency “presence region”glare.
•GC-303 allows a deeper, tighter bass to form a solid foundation for the rest of the frequency range,
better defining the original recording’s venue. Natural, unforced detail reveals nuance and energy
for an engaging musical experience.
Alpha Conductor Is Composed Of Fine PCOCC Wire Strands Treated With Furutech’s Alpha Cryogenic and Demagnetizing Process
SPECIFICATIONS
Construction and Materials
•37-strand Alpha-OCC Conductor・0.16mm, 1.15mm diameter
•Insulation-1:HDPE 1.75mm diameter
•Insulation-2: Air-foamed PE, 5.5mm diameter
•Shield-1: 0.12mm braided Alpha Conductor braid density: 80％ UP x 6.3mm diameter
•Sheath: Two layers flexible PVC (Aquamarine) 8mm diameter
•Shield-2: Special fiberglass and copper wire stranded braid
•Jacket: Nylon yarn braid approx. 10.5mm
•Shield-3: Special fiberglass and copper wire stranded braid
•Connectors: RCA [FP-106 (R)] or BNC [FP-3-117 (R)]
Electrical Properties of Cable Test Method
•Max. Conductor Resistance 25 Ω／km JISC3005 6 20℃
•Min. Insulation Resistance 1000 MΩ‧km JISC3005 9.1 20℃
•Dielectric Strength AC. 1000 V／1 min JISC3005 8
•Electrostatic Capacitance Approx 56 PF／m at 1 KHz
•Characteristic Impedance 75 ± 5 Ω at 10 MHz
