Ortofon Headshell cables LW-7N set 4 stuks kleurgecodeerd
€ 79,00
Prijs incl. BTW (21%) € 13,71
Bekabeling, UHP OFC, 3 x 0,26 mm kernader, 16 x 0,10 mm mantelader, 6/7NCu, rhodium einden
Geschatte levertijd
2-7 dagen
Op voorraad
1
Productgegevens
Merk: Ortofon
EAN: 4571106661816

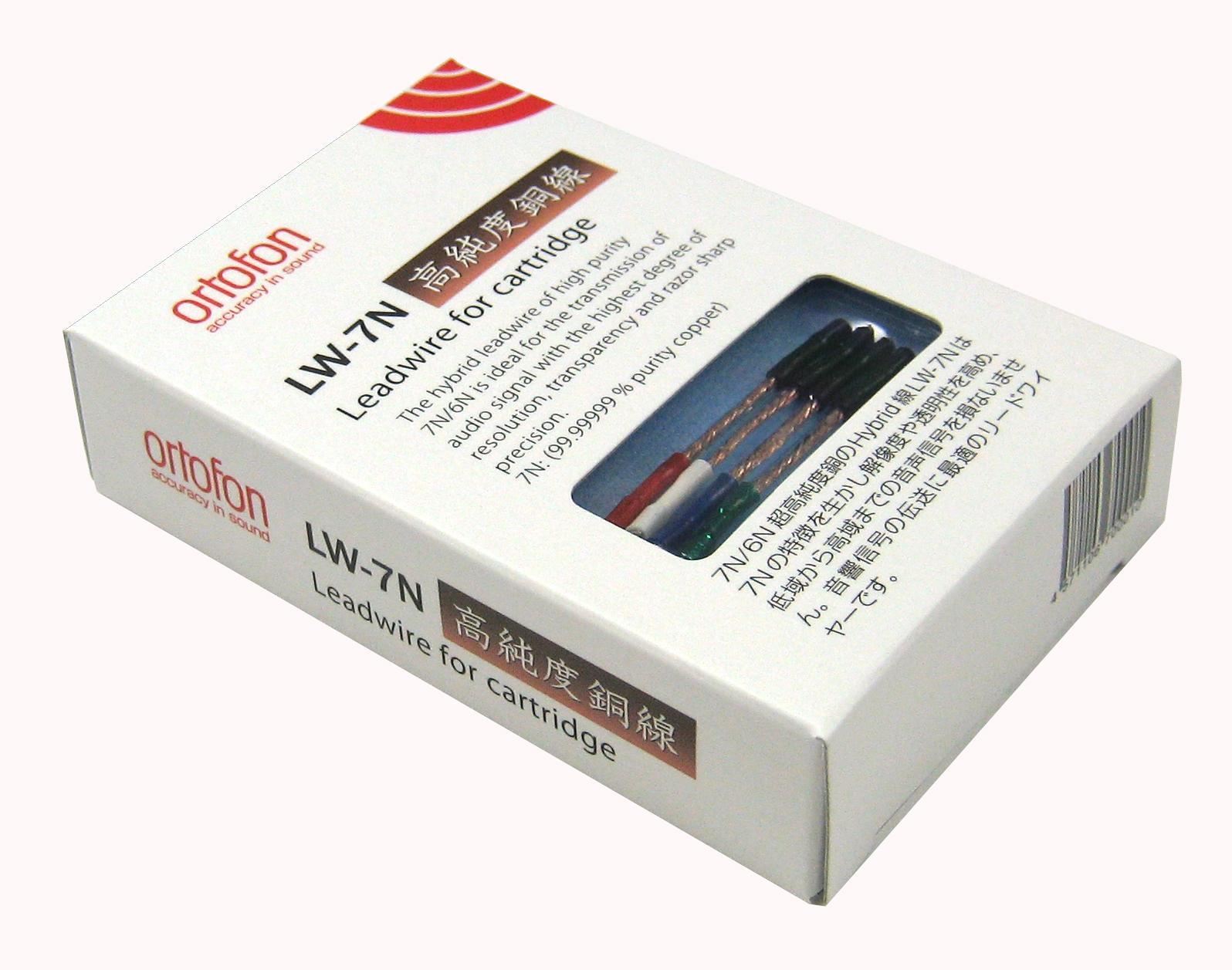

Ortofon LW-7N headshell leadwires
LW-7N is the hybrid lead wire made of Ultra High Purity Copper wire of 7N and 6 N. The end of wire is fastened by Rhodium plated terminal.
As there is no foreign particle other than Copper 7N (99.99999 % purity) in the wire, music signal can be transmitted without any noise.
The tight winding against each other makes the clear transmission of music signals. Clear and crisp tonality.
Mounting instructions
All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.
We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell. Please remember correct orientation of the leads. Ortofon SH-4 headshell and Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is normally only 1.0 mm.
Using LW 6N with the SH-4 headshell requies the LW 6N shell side clamp to be widened a little bit to fit on the SH-4 PINs. If shifted around, it may cause over-tightening of the assembly. Being aware about this detail, you will avoid the risk of having the cartridge's terminal PINs fall out.
