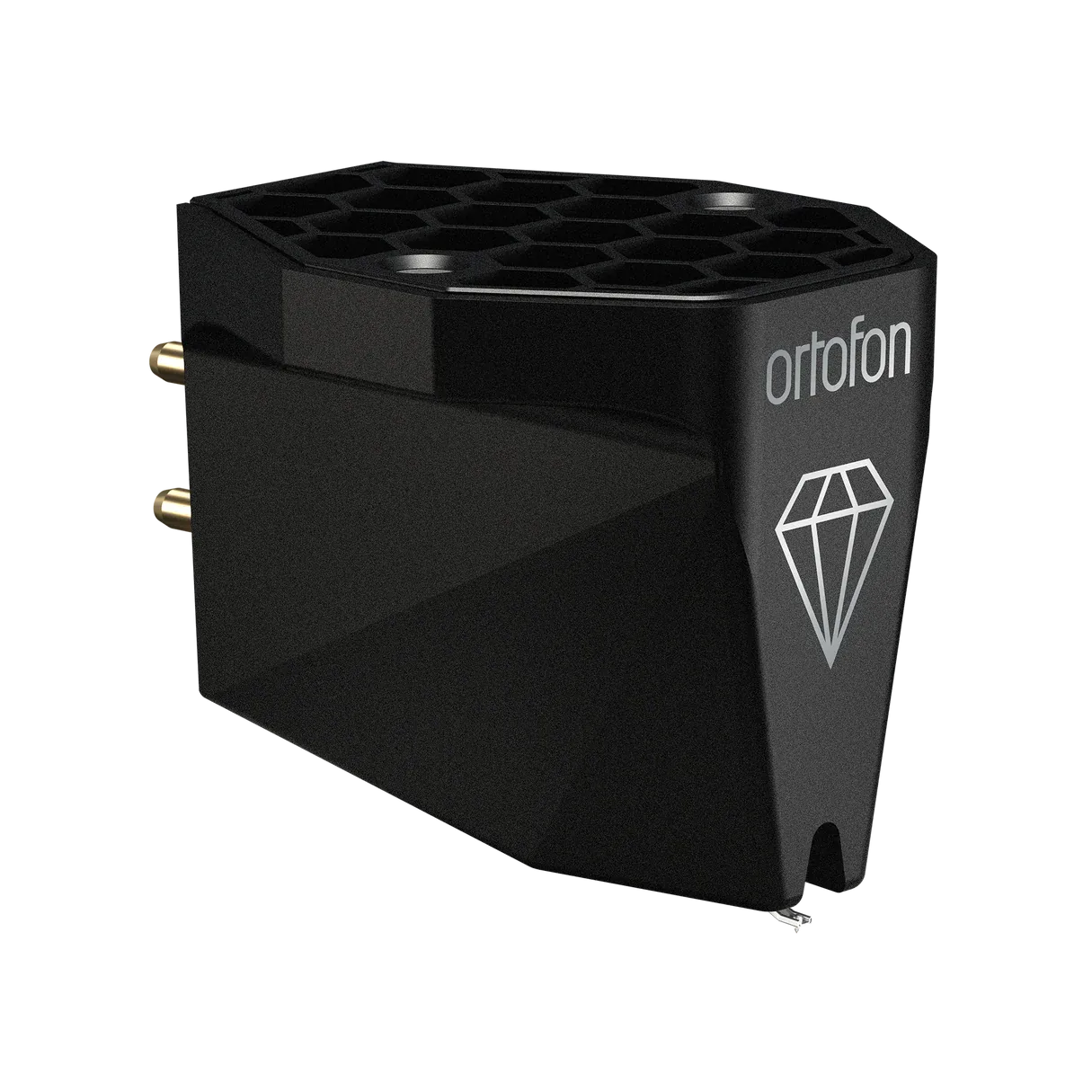

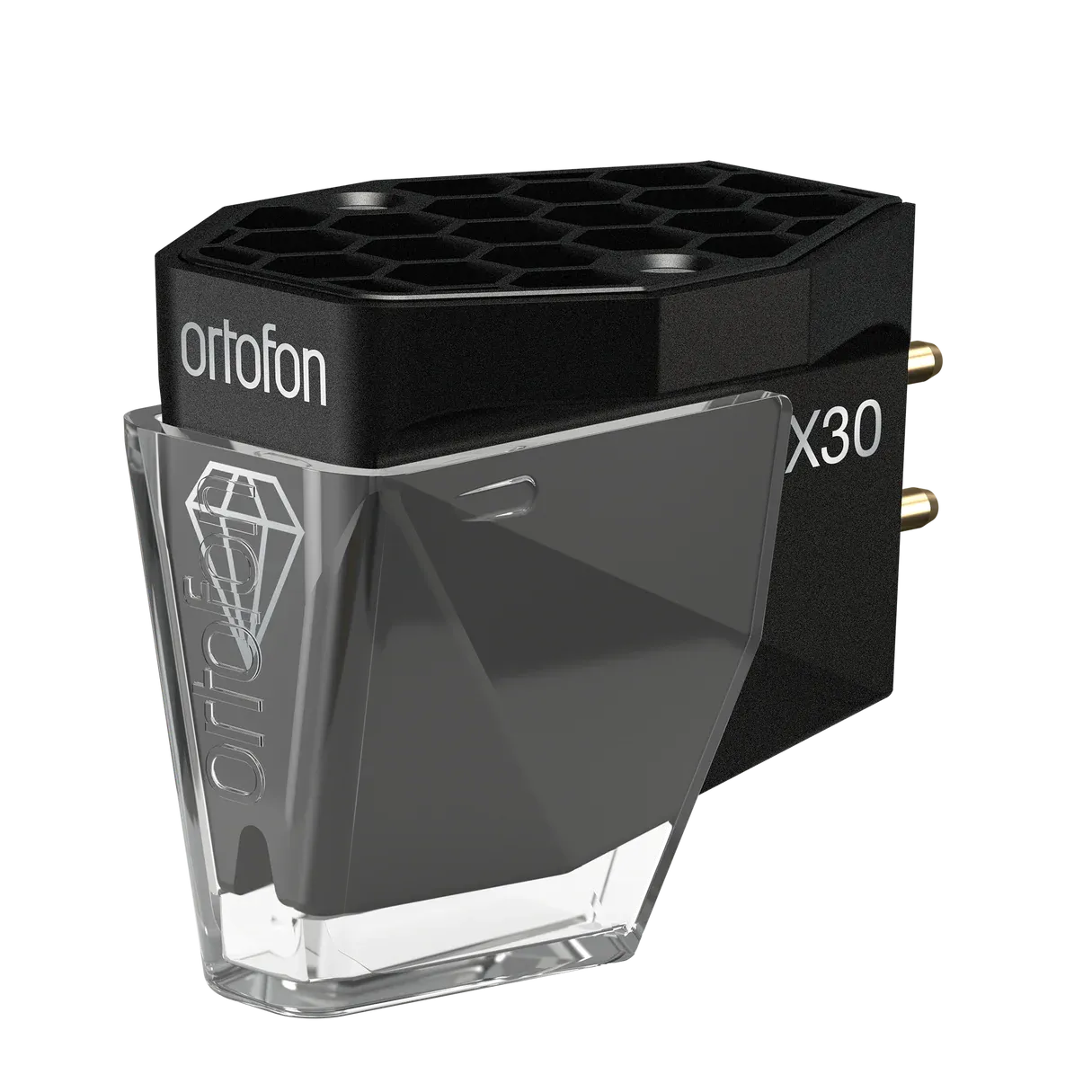

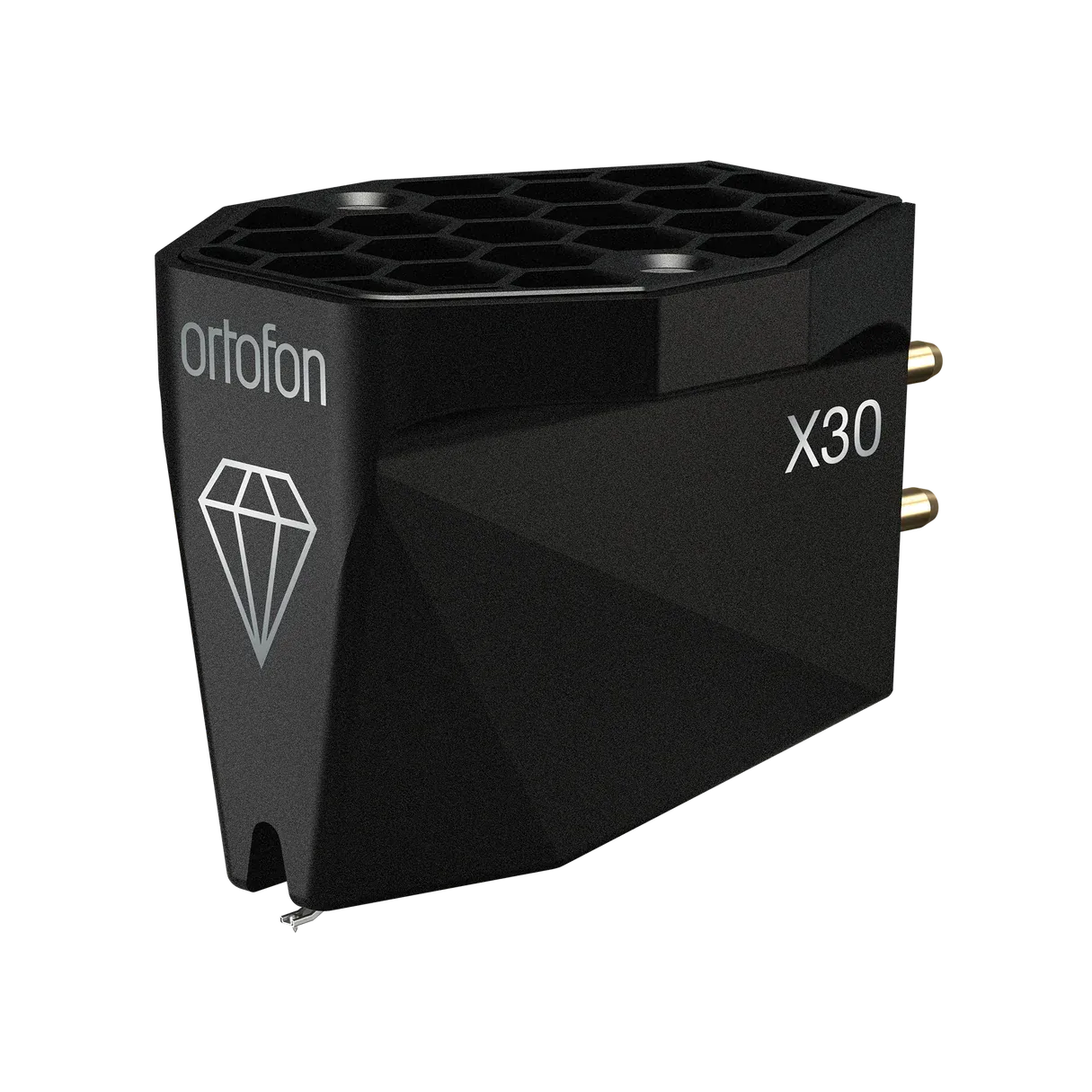

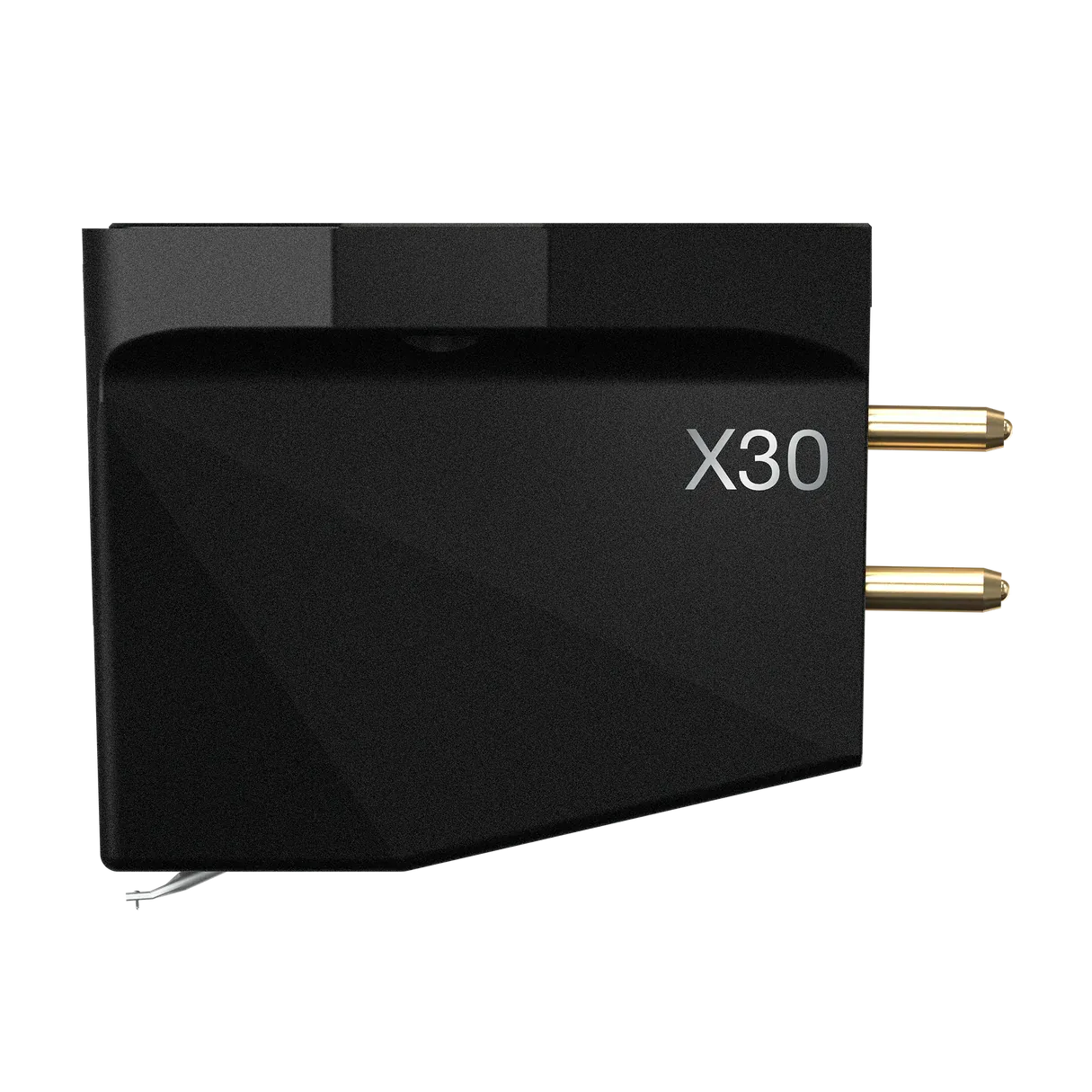

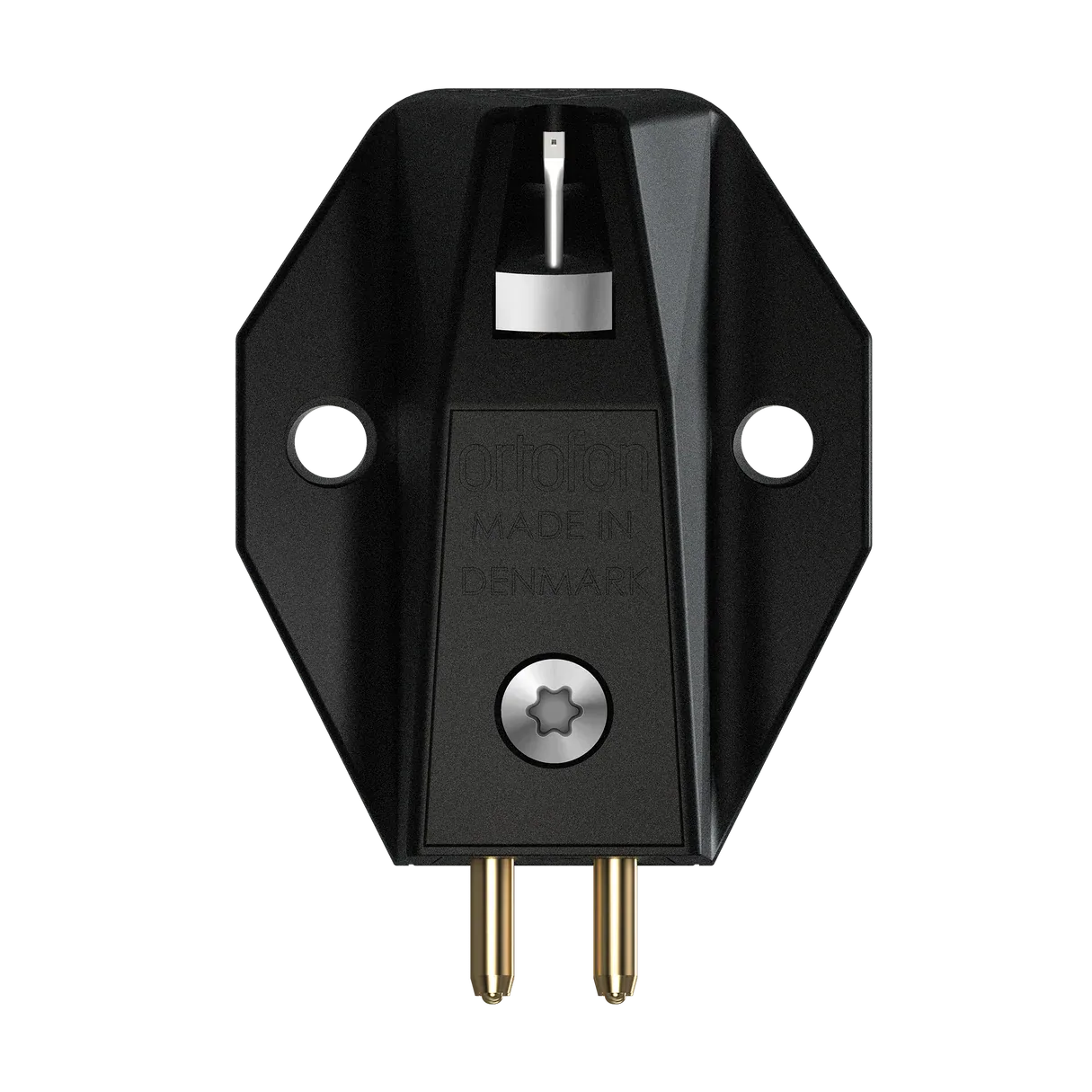

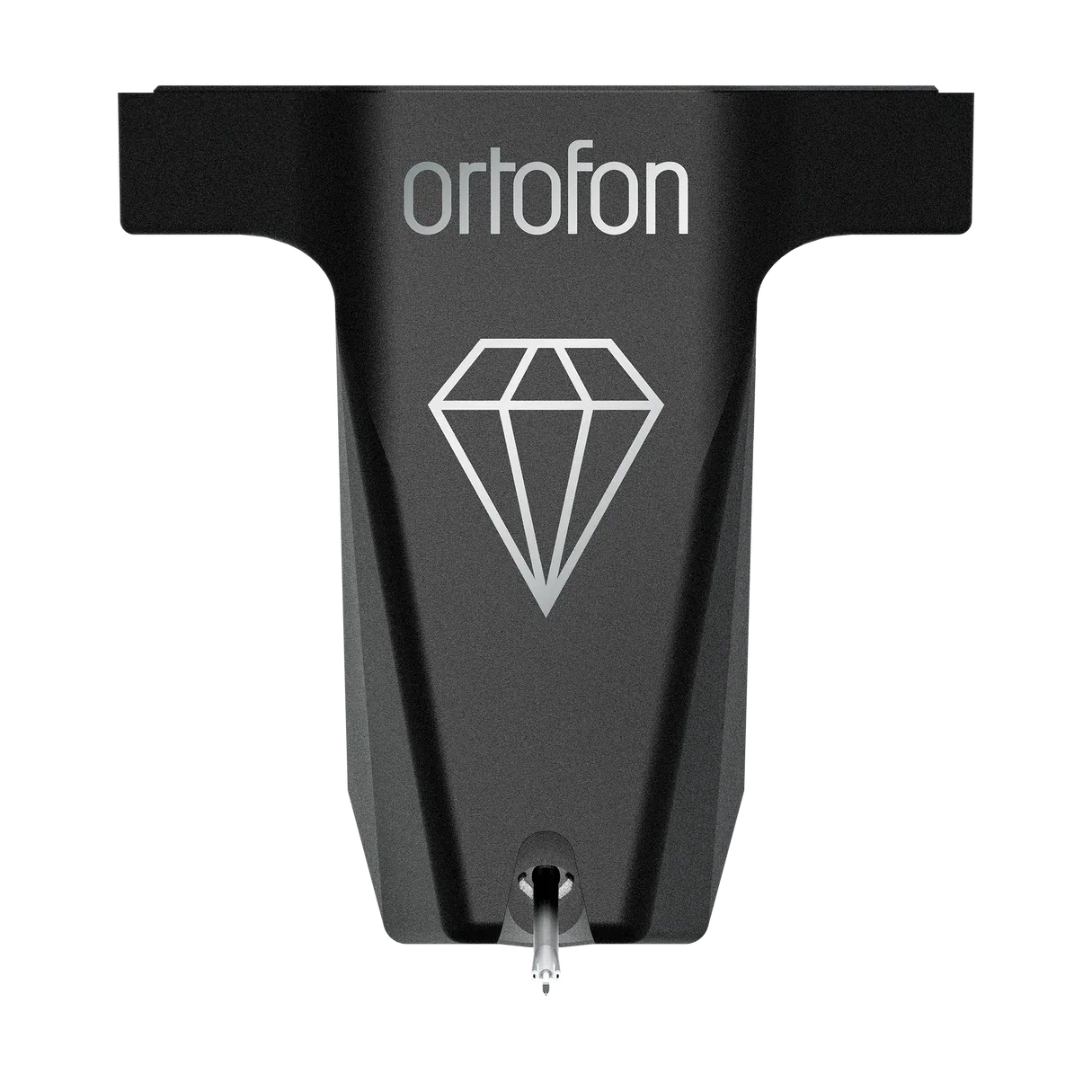

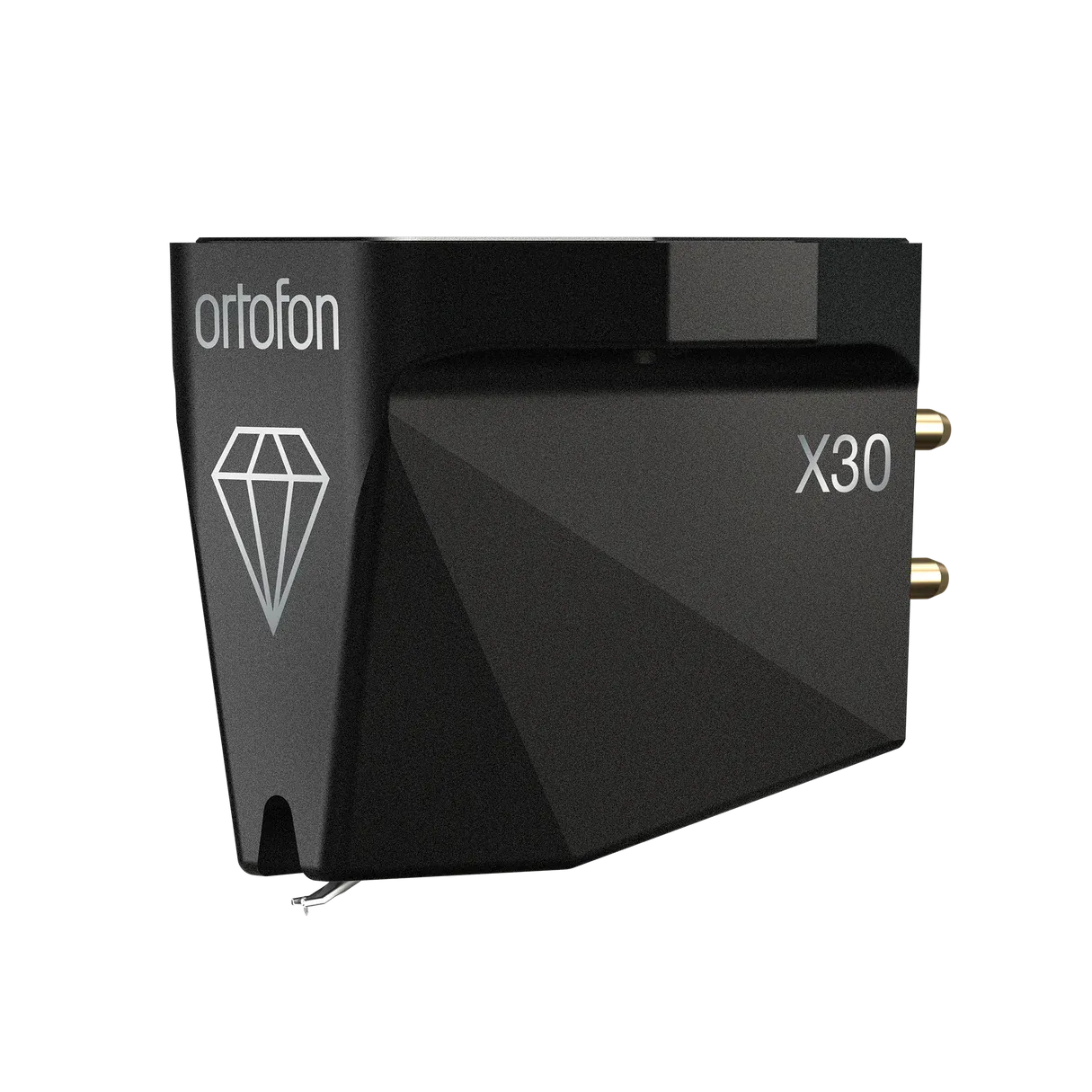

Ortofon MC X30 Nude Fine Line Diamond - Aluminium Cantilever MC-element

MC-X-series
In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.

MC-X30-Elevate Your Sound
Push your listening experience further with the MC X30. Featuring a nude fine line diamond stylus, it offers extraordinary accuracy and resolution, rendering your music and every track with breathtaking detail and dynamic range.

Experience the depth. Hear every detail.
MC X Series delivers rich, full-bodied sound with exceptional clarity, expertly tuned for true high-fidelity performance.

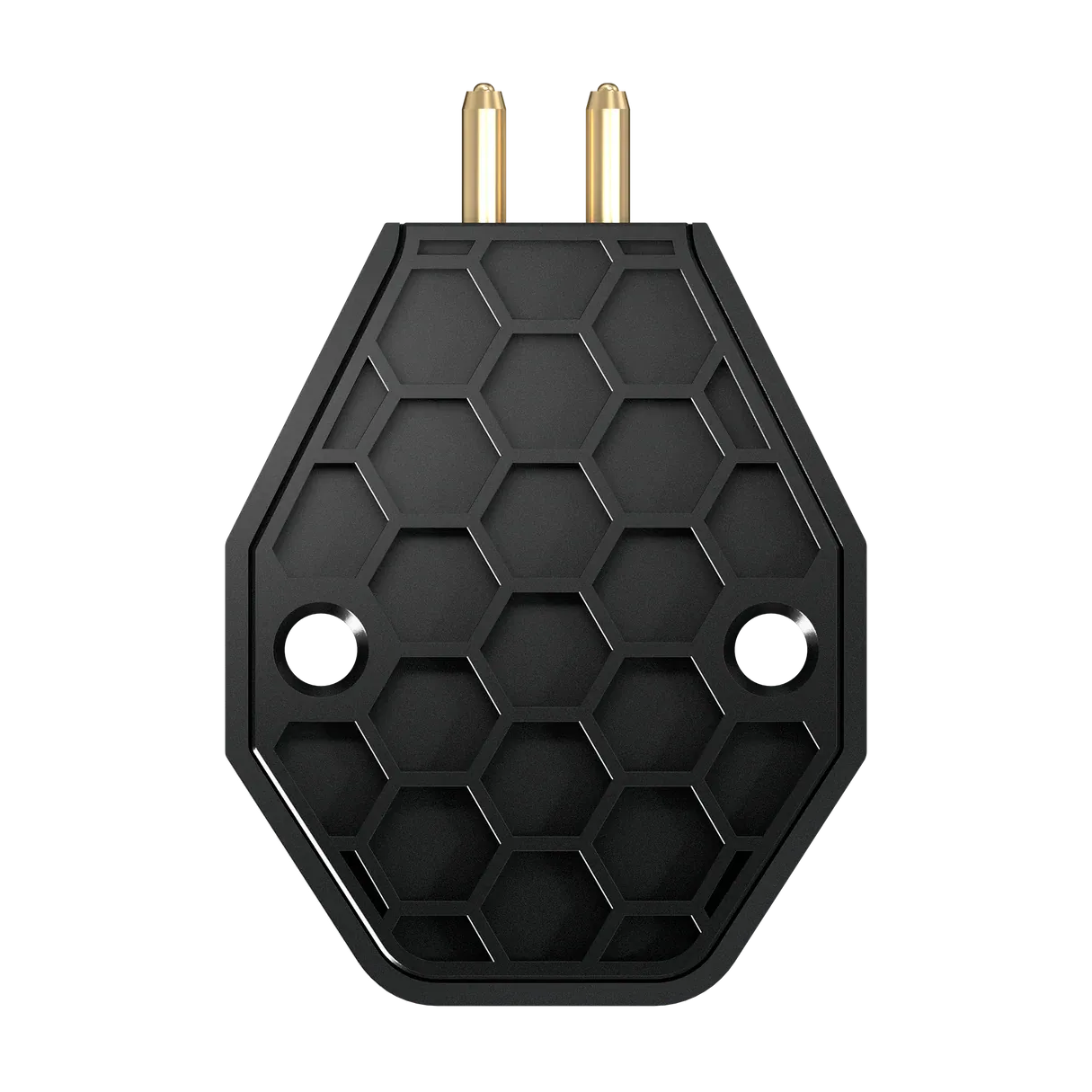

MIM-Molded Honeycomb-Structured Core
At the core of the MC X Series is an advanced honeycomb-structured stainless-steel frame, created using Metal Injection Molding (MIM) technology. This refined construction ensures superior mechanical stability, providing an ideal foundation for precise and accurate sound reproduction. After molding and sintering, a Physical Vapor Deposition (PVD) surface treatment is applied to enhance surface appearance and maintain material integrity over time.

Pure Silver Coil System
All MC X cartridges feature coils wound with high-purity silver wire. The use of premium materials is to ensure exceptional signal clarity, delivering sound with unmatched precision and preserving every detail without interference.

Optimized Magnet System
The MC X Series introduces a newly developed magnet system with a one-piece pole cylinder integrated into a rear magnet yoke. Engineered for maximum magnetic efficiency and paired with pure silver coils, this configuration ensures a clean, powerful signal path that elevates overall performance.

Custom-Developed Rubber Dampers
In-house produced and developed rubber compounds form the core of the MC X Series’ mechanical damping system. Rubber dampers are essential for controlling the physical movement of the coils, maintaining stability, minimizing unwanted vibrations, and enabling precise coil motion. The result is superior tracking, reduced distortion, and musical accuracy.

The Shape of Sound
The MC X Series embodies modern elegance with a distinctive design that seamlessly complements the tonearm. From afar, its silhouette speaks of minimalist refinement; up close, its intricate detailing reveals craftsmanship at every level. True to Ortofon’s signature aesthetic, it’s a sophisticated fusion of form and function.

A New Benchmark in Analog Perfection
The MC X Series combines advanced engineering and the finest materials to deliver a sound experience of remarkable clarity, depth, and precision. Designed for those who demand nothing less than excellence, it sets a new standard in high-end vinyl performance.

Specifications
- Output voltage: 0.4 mV
- Cantilever material:Aluminium
- Stylus type:Nude Fine-Line
- Stylus tip radius: r/R 8/40 μm
- Stylus suspensions: Ortofon exclusive
- Coil system: Quad coils
- Coil wire: High-purity silver
- Channel balance at 1 kHz: 0.5 dB
- Channel separation at 1 kHz: 26 dB
- Frequency response 20 Hz - 20 kHz: +/-1 dB
- Dynamic lateral compliance:15 μm/mN
- Recommended tracking force: 2.0 grams
- Recommended load resistance: > 50 Ω
- Internal impedance, DC resistance:6 Ω

- Cartridge weight: 8.6 grams
